- Rifle protection against 7.62x51mm, 7.62x39mm, 5.56x45mm (M193)
-

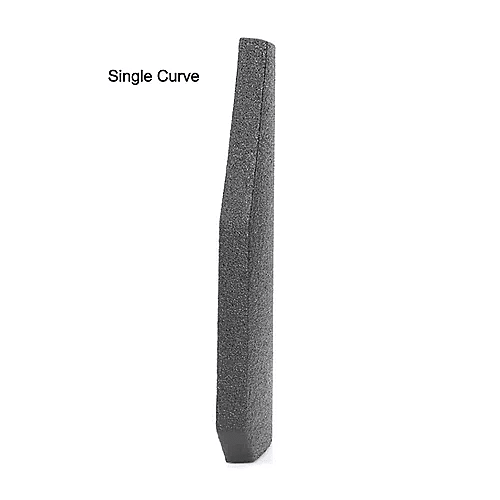

Weight: 1.6 lbs / 0.725 kg [ weight is based on standard 10"x12" single curve plate]
-
Thickness: 0.5 inches thick
-

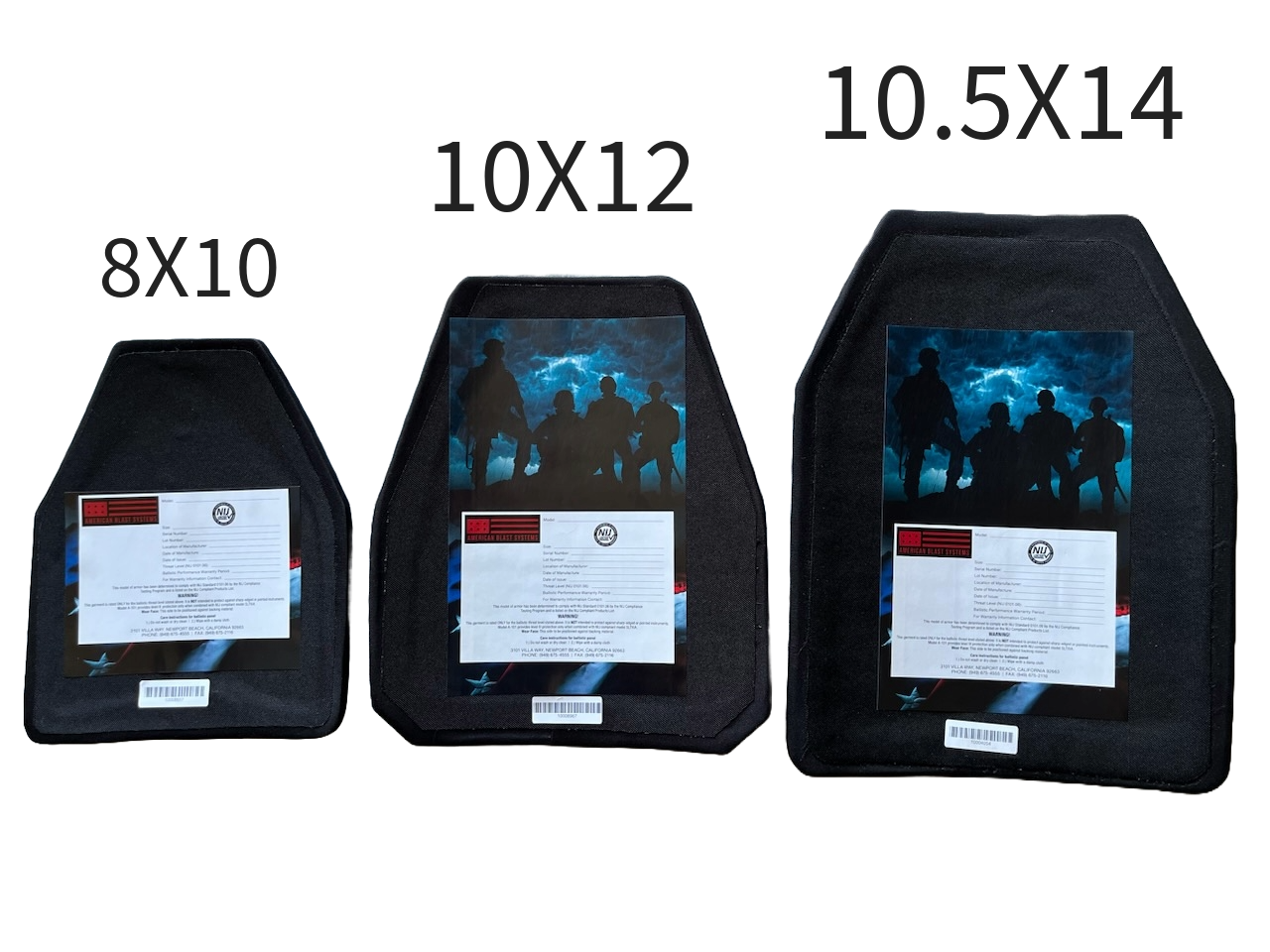

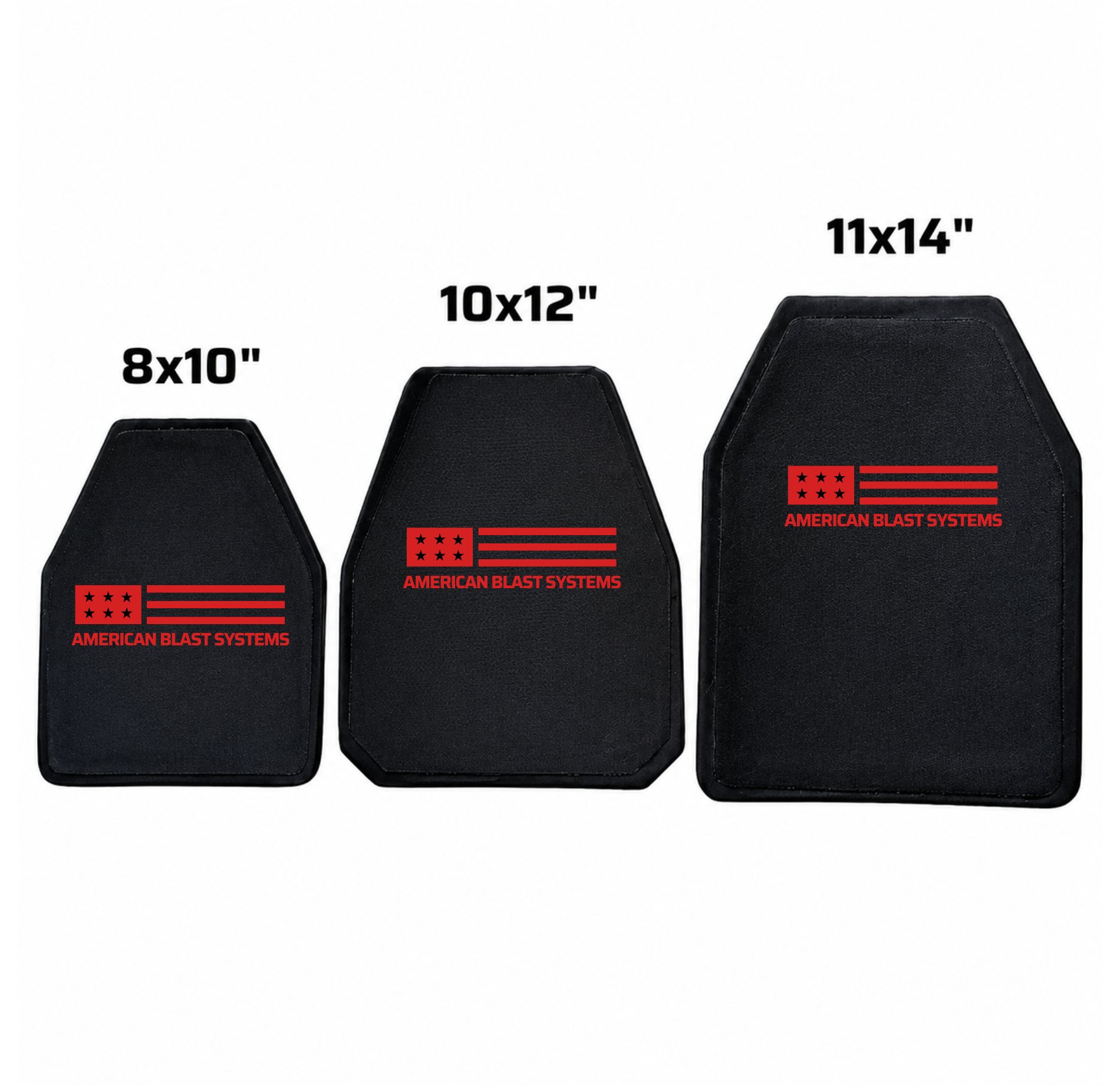

Nominal Dimensions: 8”x10”, 10”x12”, 10.5”x14”
-
Ultra-high molecular weight polyethylene and finished with a black Cordura covering
-
Warranty: 15 years
-
Tested with approved NIJ labs
-
The lightest 7.62×51 plate on the market!
-
Manufactured in the US
** Linex coating is available on request for an additional charge- please call for LineX options

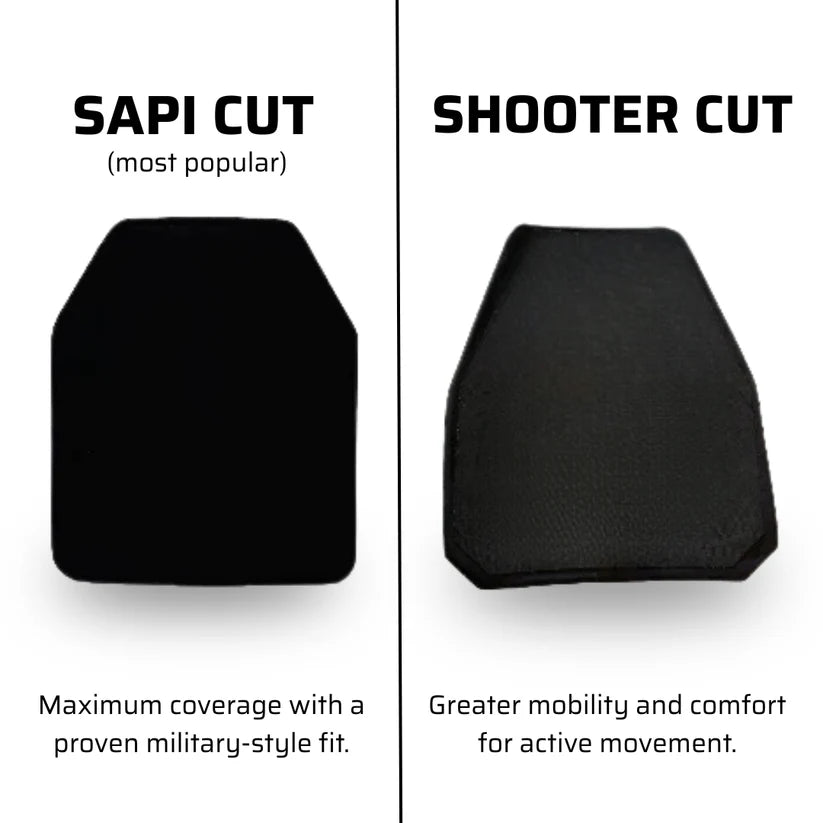

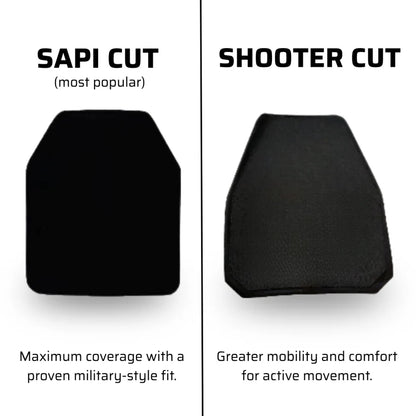

** 10.5 X 14 plates are only available in SAPI cut
*** ICW or "In Conjunction With" plates are intended to be worn with Level II or IIIA soft armor. "SA" or Stand Alone plates are intended to be used with no additional protection ***
NIJ Standard 0101.06
WEAPON |
NIJ LEVEL |
BULLET |
MASS |
SHOTS |
VELOCITY |
Rifle |
Level III |
7.62X51 mm FMJ, steel jacketed bullets (M80) 7.62x39mm 5.56x45mm (M193) |
9.6 g (149 gr) |
Multi-Hit |
f 847 m/s ± 9.1 m/s (2780 ft/s ± 30 ft/s) |
Plate Weights
ICW PLATE SIZE |
SINGLE CURVE CORDURA |
DOUBLE CURVE CORDURA |
8x10 SAPI |
1.4 LBS |
1.4 LBS |
8x10 SHOOTER |
1.2 LBS |
1.2 LBS |
10x12 SAPI |
1.6 LBS |
1.8 LBS |
10x12 SHOOTER |
1.6 LBS |
1.8 LBS |
10.5x14 SAPI |
2.4 LBS |
2.4 LBS |
10.5x14 SHOOTER |
2.4 LBS |
2.4 LBS |
Actual weight may vary within 0.2 - 0.4 lbs
ICW PLATE SIZE |
SINGLE CURVE LINEX |
DOUBLE CURVE LINEX |
8x10 SAPI |
1.4 LBS |
1.6 LBS |
8x10 SHOOTER |
1.4 LBS |
1.4 LBS |
10x12 SAPI |
2.2 LBS |
2.2 LBS |
10x12 SHOOTER |
2.0 LBS |
2.0 LBS |
10.5x14 SAPI |
2.8 LBS |
2.8 LBS |
10.5x14 SHOOTER |
2.6 LBS |
2.6 LBS |
Actual weight may vary within 0.2 - 0.4 lbs
- Rifle protection against 7.62x51mm, 7.62x39mm, 5.56x45mm (M193)
-
Weight: 1.6 lbs / 0.725 kg [ weight is based on standard 10"x12" single curve plate]
-
Thickness: 0.5 inches thick
-
Nominal Dimensions: 8”x10”, 10”x12”, 10.5”x14”
-
Ultra-high molecular weight polyethylene and finished with a black Cordura covering
-
Warranty: 15 years
-
Tested with approved NIJ labs
-
The lightest 7.62×51 plate on the market!
-
Manufactured in the US
** Linex coating is available on request for an additional charge- please call for LineX options
** 10.5 X 14 plates are only available in SAPI cut
*** ICW or "In Conjunction With" plates are intended to be worn with Level II or IIIA soft armor. "SA" or Stand Alone plates are intended to be used with no additional protection ***
NIJ Standard 0101.06
WEAPON |
NIJ LEVEL |
BULLET |
MASS |
SHOTS |
VELOCITY |
Rifle |
Level III |
7.62X51 mm FMJ, steel jacketed bullets (M80) 7.62x39mm 5.56x45mm (M193) |
9.6 g (149 gr) |
Multi-Hit |
f 847 m/s ± 9.1 m/s (2780 ft/s ± 30 ft/s) |
ICW PLATE SIZE |
SINGLE CURVE CORDURA |
DOUBLE CURVE CORDURA |
8x10 SAPI |
1.4 LBS |
1.4 LBS |
8x10 SHOOTER |
1.2 LBS |
1.2 LBS |
10x12 SAPI |
1.6 LBS |
1.8 LBS |
10x12 SHOOTER |
1.6 LBS |
1.8 LBS |
10.5x14 SAPI |
2.4 LBS |
2.4 LBS |
10.5x14 SHOOTER |
2.4 LBS |
2.4 LBS |
Actual weight may vary within 0.2 - 0.4 lbs
ICW PLATE SIZE |
SINGLE CURVE LINEX |
DOUBLE CURVE LINEX |
8x10 SAPI |
1.4 LBS |
1.6 LBS |
8x10 SHOOTER |
1.4 LBS |
1.4 LBS |
10x12 SAPI |
2.2 LBS |
2.2 LBS |
10x12 SHOOTER |
2.0 LBS |
2.0 LBS |
10.5x14 SAPI |
2.8 LBS |
2.8 LBS |
10.5x14 SHOOTER |
2.6 LBS |
2.6 LBS |
Actual weight may vary within 0.2 - 0.4 lbs
American Blast Systems & its affiliated companies worldwide warrant our products against defects in material or workmanship for a period of 15 years from the original date of purchase of the product by a consumer.

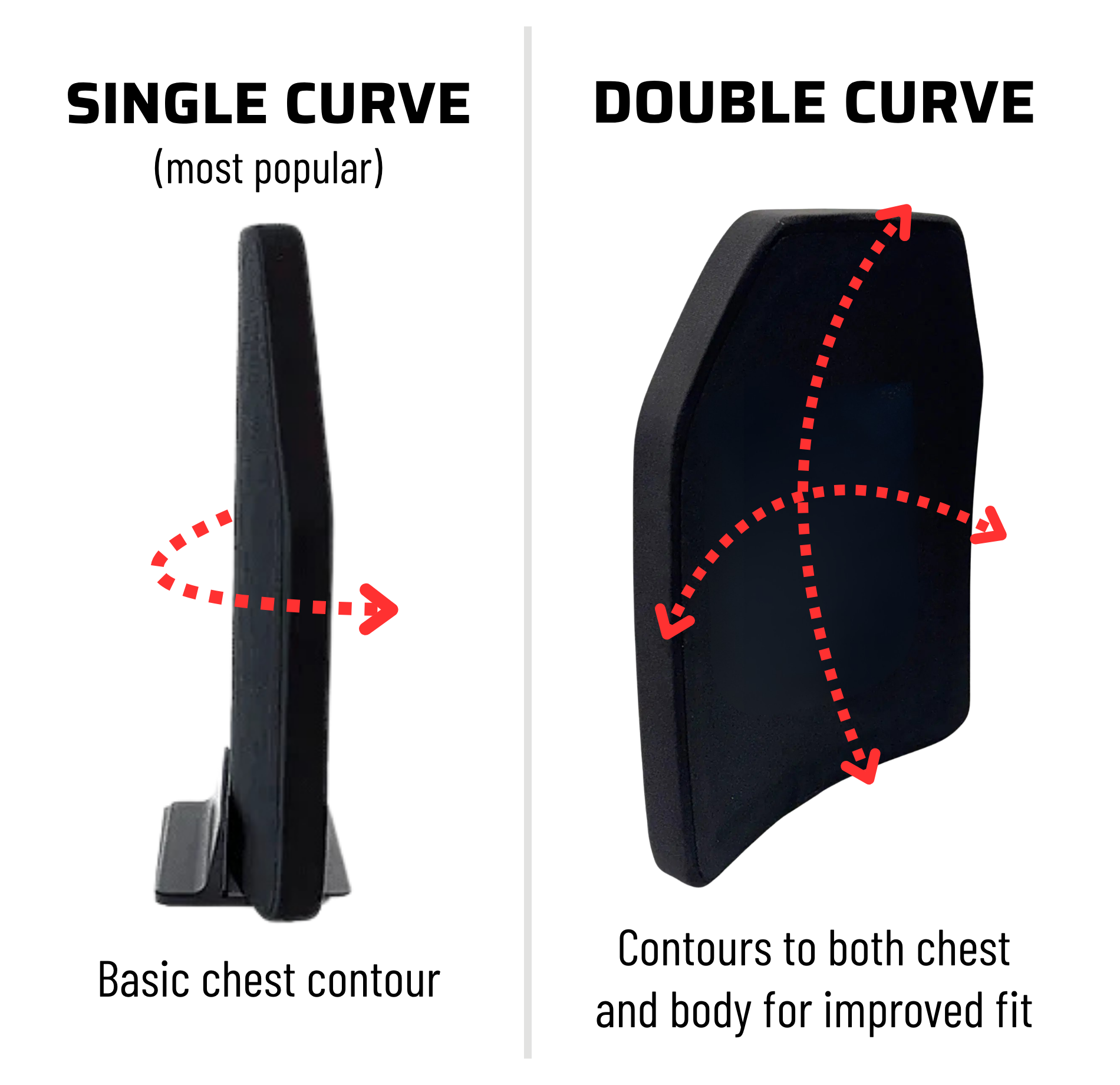

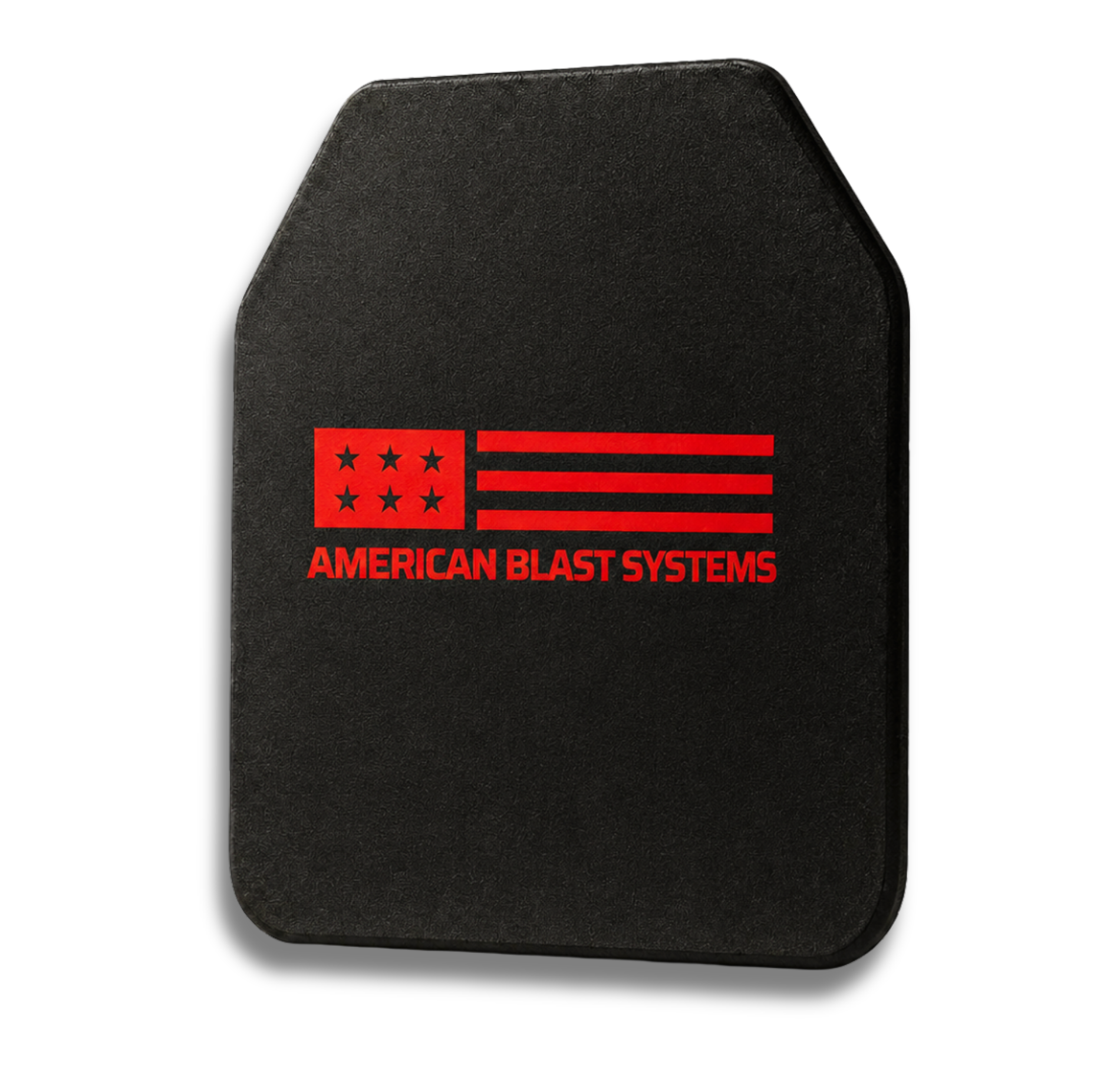

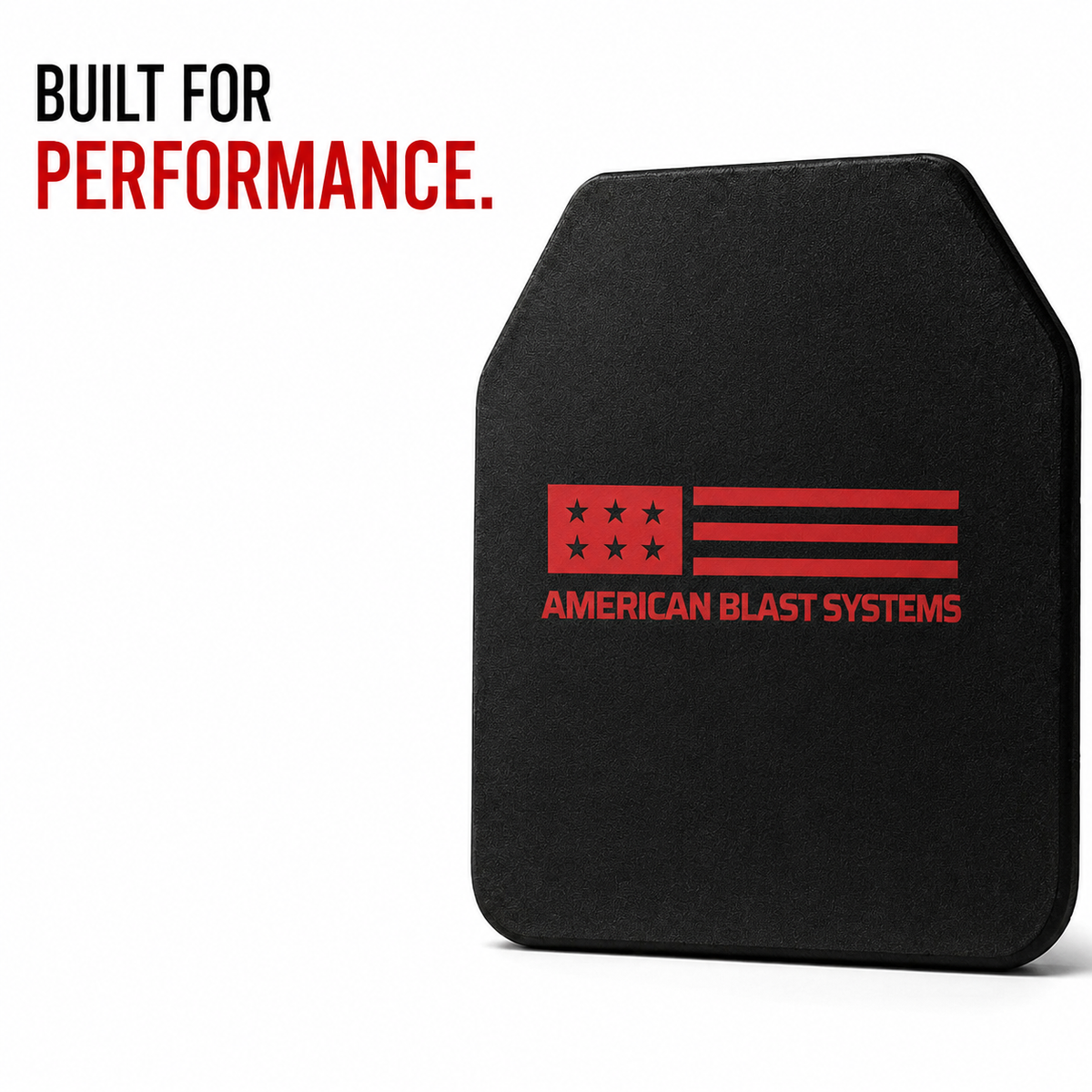

Our bullet-resistant lightweight plate is a single-curve (double curve upon request) plate insert that is perfect for police and military protective armor. Our light plate is manufactured from ultra-high molecular weight polyethylene and finished with a black Cordura cover. For more information on our lightest ballistic plate, please contact us.
Due to the nature of the products we do not accept returns, refunds, or exchanges. All sales are final.
